Filament PET Polyester Brush Fiber Yarn Extruder Machine Filament Production Line

1 Set
MOQ
$105,400.00(>=1 Sets)
Prix
Filament PET Polyester Brush Fiber Yarn Extruder Machine Filament Production Line
traits Galerie Description de produit Demandez une citation
traits
Caractéristiques
Application: Filament
En plastique traité: ANIMAL FAMILIER
Condition: nouveau
Conception de vis: Monovis
Matériel de vis: 38CrMoALA
Diamètre de vis (millimètres): 90
Rapport de la vis L/D: 30:1
Vitesse de vis (T/MN): 80 t/mn
Emplacement de salle d'exposition: Aucun
Tension: 380V
Dimension (l*w*h): 35M*6M*6M
Puissance (kilowatts): 160
Poids: 22 tonnes
Garantie: 1 an
Arguments de vente principaux: De grande précision
Industries applicables: Usine
Type de commercialisation: Produit ordinaire
Sortant-inspection visuelle: Fourni
Rapport des essais de machines: Fourni
Garantie des composants de noyau: 1 an
Composants de noyau: Moteur, automate, boîte de vitesses
Type: Ligne ronde d'extrusion de fibre
Inverseur: ABB
Matière première: Flocons réutilisés d'animal familier
Contrôle de température: OMRON
Contacteur: SIEMENS
Le service après-vente a fourni: Support technique visuel, pièces de rechange libres, installation de champ, commission et formation,
Après service de garantie: Support technique visuel, appui en ligne, maintenance sur le terrain de pièces de rechange, et servi
Emplacement local de ServiceÂ: Aucun
Certification: CE ISO
Informations de base
Certification: CE ISO
Conditions de paiement et expédition
Packaging Details: plywood package after pe film covered
Supply Ability: 10 Piece/Pieces per Month
Description de produit
PET Brush Broom Monofilament Yarn Making Extrusion Machine
Machine Description
PET brush broom monofilament production line consists of special design PET material dehumidifying and crystallizing system, extruder, screen changer, Melt pump, mold,
haul-off, oven, and winder, etc.
Techinical Parameters
1. With 100% bottle flakes material, or mixed with PET raw material 2. New technology, hot wind cycles to dry, increase the viscosity of the bottle flakes material;
3. Secondary stretching, increase the tensile strength and elasticity.
4. Precise and energy saving temperature control system, power saving, low noise, low input and high yield 5. Single screw extruder, low degradation compared with twin- screw extruder 6. Easy operation, convenient maintenance, the labor and the electricity cost is low
Material
PET recycled flakes /PET virgin granules


Product diameter
0.06-5.0mm


Manpower
2-4 persons/shit


Machine dimension
30-50*6*6m


Extruder
SJ-75/33
SJ-90/33
SJ-120/33
Max output
80kg/h
150kg/h
250kg/h

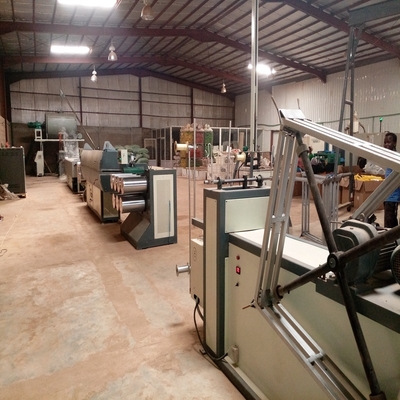

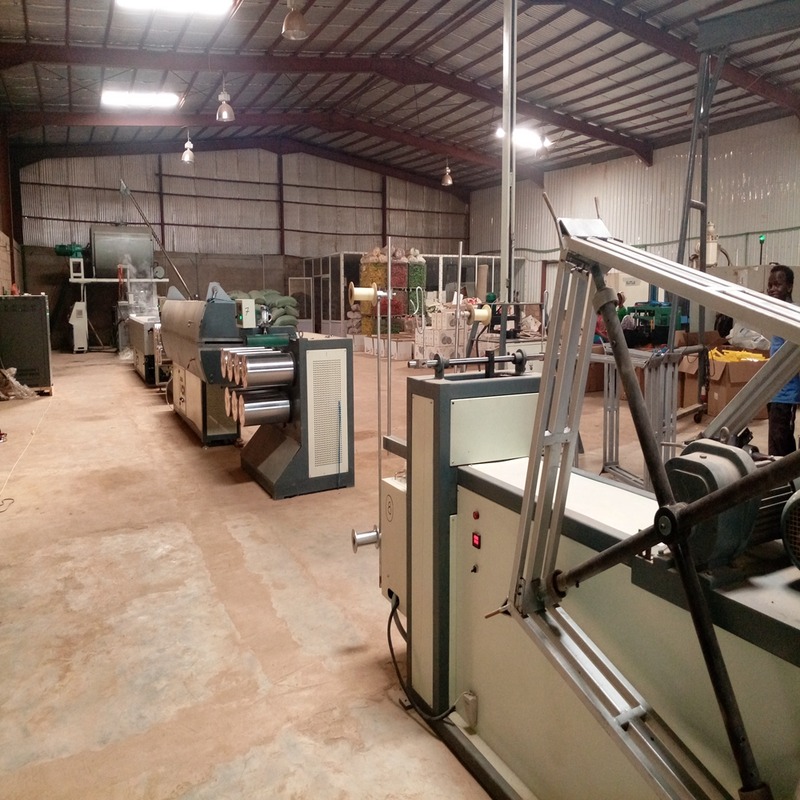

Machine Pictures & Details
brush broom monofilament production line list
No.
Name
Qt'y
1
Automatic Feeder
1 set
2
Dehumidifying and Crystallizing Unit
1 set
3
SJ-90/33 Single Screw Extruder
1 set
4
Non-stop Screen Changer
1 set
5
Melt Pump
1 set
6
Die Head
1 set
7
Quenching Bath
1 set
8
Water-suction Device
1 set
9
First Godet Rollers
1 set
10
Hot Water Oven
1 set
11
Water Heating Tank
1 set
12
Water-suction Device
1 set
13
Second Godet Rollers
1 set
14
Hot Air Oven
1 set
15
Third Godet Rollers
1 set
16
Oil Roller
1 set
17
Winder
2 sets
18
Calibration Oven
1 set
19
Packing Unit
1 set
20
Cutting Unit
1 set
21
Control System
1 set
After Sales Service
1. Pre-sale service:
To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.
Pre-sale service's main purpose is to assist the clients prepare the project planning and system requirements analysis, enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.
2. After-service
1 Free installation and debugging
2 Provide all kinds of product formula, technology and chemical material manufacturer information
3 According to the customer's requirements, provide technical guidance
4 Technical training for employees of customers
5 Responsible for maintenance service, door to door service if necessary.
Company Introduction
Qingdao Jinfuxin Plastic Machinery Co., Ltd was founded in 2002, covers an area of 15000 square meters. Our company engages in research & development, manufacturing, sales, and after-sale service of new plastic machinery.


Exhibition




FAQ
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 20 years, we also have our own trade company

Q: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely. We are Trade Assurance by Alibaba, we can make business by Trade Assurance.

Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)

Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.

Q: How to reach our factory?
A: It will take 40 minutes from Qingdao Liuting International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
